Pressure gauges + accessories

Pressure gauge with capsule element

class 1.6, with zero adjustment

for pressure indicating according
for gas accordance with DVGW code of practice G 260 and air
housing stainless steel Ø 100 mm,

measuring element copper/brass (CuBe)
connection R 1/2 radial,
TS -20°C to + 60°C, overload safety 1.3 times

Type

Connection/
Thread

Range

Weight

Art.No.

stock

KP 100 - 025
R ½
0 - 25 mbar
0,60 kg
8060015
KP 100 - 040
R ½
0 - 40 mbar
0,60 kg
8061015
KP 100 - 060
R ½
0 - 60 mbar
0,60 kg
8062015
KP 100 - 100
R ½
0 - 100 mbar
0,60 kg
8063015
KP 100 - 160
R ½
0 - 160 mbar
0,60 kg
8064015
KP 100 - 250
R ½
0 - 250 mbar
0,60 kg
8065015
KP 100 - 400
R ½
0 - 400 mbar
0,60 kg
8066015
KP 100 - 600
R ½
0 - 600 mbar
0,60 kg
8067015

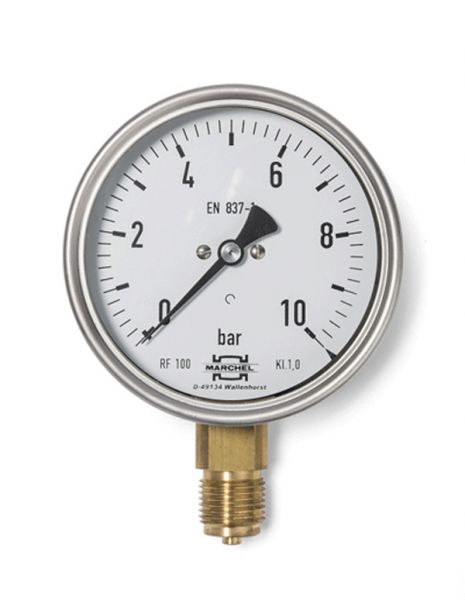

Pressure gauge with bourdon tube

class 1.0, without zero adjustment

for pressure indicating according
for gas accordance with DVGW code of practice G 260 and air
housing stainless steel Ø 100 mm,
measuring element copper/brass (CuBe)
connection R 1/2 radial,
TS -20°C to + 60°C, overload safety 1.3 times

Type

Connection/
Thread

Range

Weight

Art.No.

stock

RF 100 - 1,0
R ½
0 - 1,0 bar
0,60 kg
8070015
RF 100 - 1,6
R ½
0 - 1,6 bar
0,60 kg
8071015
RF 100 - 2,5
R ½
0 - 2,5 bar
0,60 kg
8072015
RF 100 - 4,0
R ½
0 - 4,0 bar
0,60 kg
8073015
RF 100 - 6,0
R ½
0 - 6,0 bar
0,60 kg
8074015
RF 100 - 10,0
R ½
0 - 10,0 bar
0,60 kg
8075015
RF 100 - 16,0
R ½
0 - 16,0 bar
0,60 kg
8076015
RF 100 - 25,0
R ½
0 - 25,0 bar
0,60 kg
8077015

Spare parts for pressure gauges

Spare parts for pressure gauges KP 100 .. and RF 100



Type

Weight

Art.No.

stock

Glass pane
0,070 kg
30001170
Flat gasket for glass pane
0,003 kg
30001176

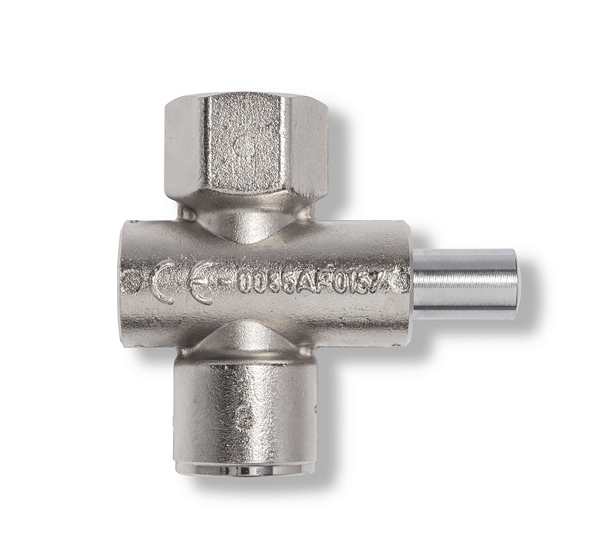

Manual cock

Certifications:
- DVGW-G and EU - type tested and certified

for shutting off pressure gauges, for gas acc. with DVGW code of
practice G 260 and air

PS 5 = PS max. 5 bar, TS -20°C bis +60°C

Type

Connection/
Thread

PS max. bar

Installation length

Weight

Art.No.

stock

VE 2
Rp ¼ / G ¼
5 bar
49 mm
0,155 kg
8080008
VE 2
Rp ½ / G ½
5 bar
68 mm
0,260 kg
8050015

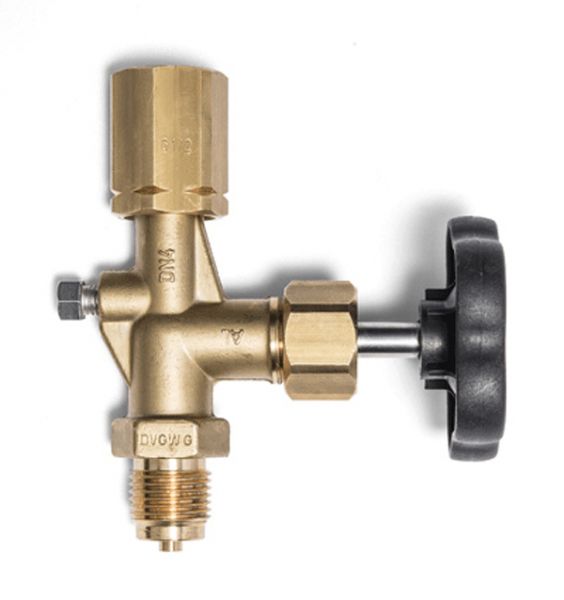

Shut-off valve

Certifications:
- DVGW-G

for shutting off pressure gauges, for gas acc. with DVGW code of
practice G 260 and air

PS 100 = PS max. 100 bar, TS -20°C bis +60°C

Type

Connection/
Thread

PS max. bar

Installation length

Weight

Art.No.

stock

MAV 16 270
G ½
100 bar
100 mm
0,535 kg
8051015

Gasket of copper for pressure gauges

Type

Connection/
Thread

Weight

Art.No.

stock

gasket for pressure gauges
G ½ (14,8 x 8 x 4,2 mm)
0,002
8013015
