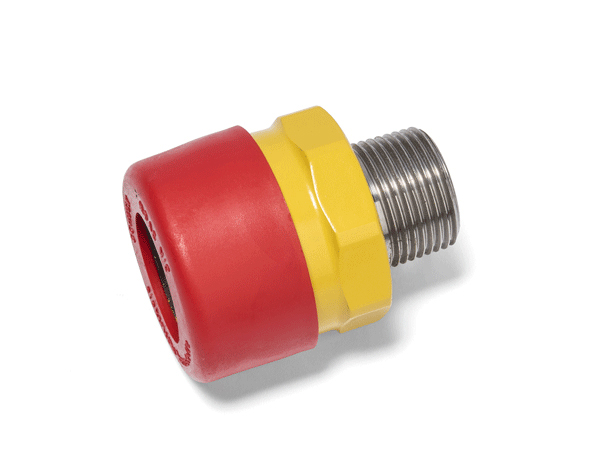

Insulating pieces

Insulating pieces PS 5 bar, GT 5 (TS-GT-AG-IG )

Certifications:
- Pressure Equipment Directive 2014/68/EU ( > Rp 1/R1)
- DVGW-G

for separation of electrical currents if possibly appears between gas supply line and gas pipe for interior Installation (only for mounting inside the building), for gas accordance with DVGW code of practice G 260

PS 5 = PS max. 5 bar, TS -10°C to +60°C,

version DIN 3389, (HTB +650°C - 30 min.)

Type

Connection/
Thread

PS max. bar

Installation length

tested to

Weight

Art.No.

stock

TS-GT-AG-IG 25
Rp 1 / R 1"
5 bar
78 mm
2 kV
0,660 kg
20001025
TS-GT-AG-IG 32
Rp 1¼ / R 1¼"
5 bar
85 mm
2 kV
1,300 kg
20002032
TS-GT-AG-IG 40
Rp 1½ / R1½"
5 bar
85 mm
2 kV
1,300 kg
20003040
TS-GT-AG-IG 50
Rp 2 / R 2"
5 bar
94 mm
2 kV
1,820 kg
20004050

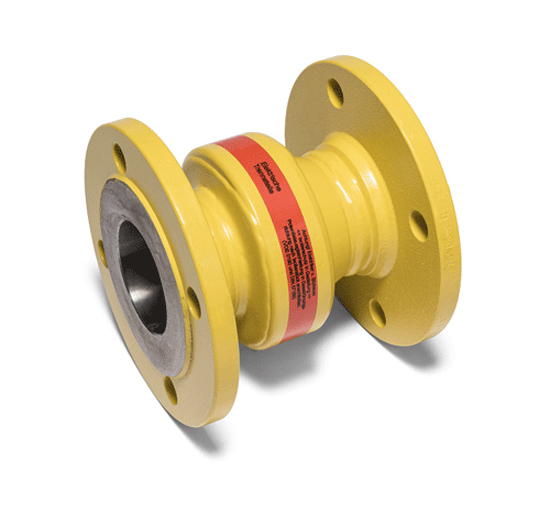

Insulating pieces PS 5 bar, GT 5 (ST-GT-F-F)

Certifications:
- Pressure Equipment Directive 2014/68/EU ( > Rp 1/R1)
- DVGW-G

for separation of electrical currents if possibly appears between gas supply line and gas pipe for interior Installation (only for mounting inside the building), for gas accordance with DVGW code of practice G 260

PS 5 = PS max. 5 bar, TS -10°C to +60°C,

version DIN 3389, (HTB +650°C - 30 min.)

Type

Connection/
Flange

PS max. bar

Installation length

tested to

Weight

Art.No.

stock

ST-GT-F-F 65
DN 65
5 bar
170 mm
2 kV
8,500 kg
20018065
ST-GT-F-F 80
DN 80
5 bar
180 mm
2 kV
11,600 kg
20019080
ST-GT-F-F 100
DN 100
5 bar
190 mm
2 kV
13,710 kg
20020100
ST-GT-F-F 125
DN 125
5 bar
195 mm
2 kV
17,740 kg
20023125
ST-GT-F-F 150
DN 150
5 bar
210 mm
2 kV
23,400 kg
20021150
ST-GT-F-F 200
DN 200
5 bar
230 mm
2 kV
34,000 kg
20022200
