Cleaning machines for slaughtering hooks



Cleaning machines for slaughtering hooks

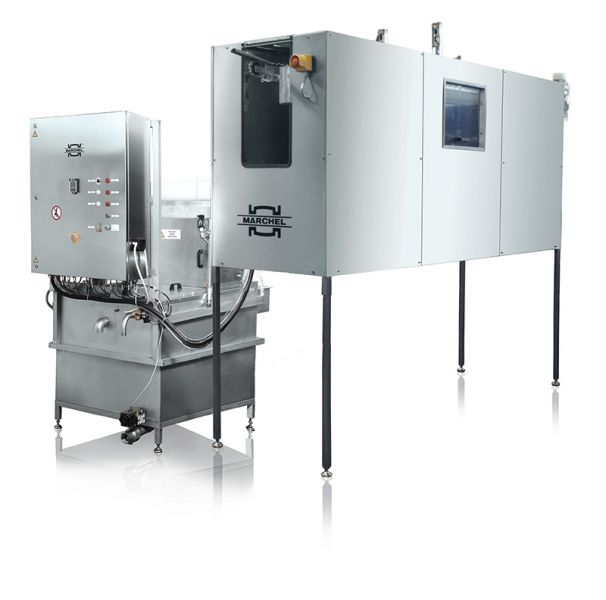

All here shown High Pressure cleaning machines are working with a special developed and patented jet-system device, which can be adjusted individually. The machine is supplied by high pressure pump.
In the entrance of the machine the polluted slaughtering hooks will be picked up by the conveyor, made of stainless steel, which transports the hooks through the machine.

The specially cleaning effect will be achieved by oscillating jets. So the jet-stream will reach every point of the hooks surface.

A precise continuous dosing of cleaning-additives contributes to the cleaning-effect as well as a constant temperature regulation of the raw water.

Advantages, you can profit of!

  1. Very good cleaning results. As well as for hooks with a stronger pollution
  2. High capacity favourable
  3. Best-value price-performance ratio
  4. Compact construction
  5. Fullautomatically function
  6. Selfcleaning abilities
  7. Smal maintenance costs
  8. Environment-sparing
  9. Cost savings in procurement and disposal (cleaning additives and waste water)
  10. Easy implementation into already existing convey systems
  11. Can be used as a stand alone system without any further systems
  12. Short Installation time
  13. User-friendly
  14. Comfort using by a coloured touch panel

The hook-shower removes the debris of the cleaning additives and can be used with hot or cold water.

Marchel cleaning devices combines ecologic and economic performance. The used water will be recycled inside i. e. used more times. This optimize the fresh water consumption as well as for energy, cleaning additives and savage.



INLINE-JET

New and exclusively at Marchel:


Inline-Jet - Hookshowering on the glidingpoint of hooks. No spread off of cleaning additions into following transport systems.

Patent specification: DE19826620 C1

High pressure cleaning machine HDW Compakt for euro, cattle and birail hooks

Cleaning capacity up to 300 hooks/h, even with particularly heavy soling. This unit is characterized by its compact design combined with excellent cleaning performance. Even bristle residues and labels are no problem for this unit.

Equitment

  • Fully automatic control by PLC from SIEMENS
  • Operation via comfortable touch panel and optimal menu guidance (SIEMENS TP700)
  • Weekly timer incl. automatic change from alkaline to acidic detergent additive
  • Throughput speed of the hooks can be adjusted steplessly = exact adaptation to the actual hook requirement
  • individual adjustment possibility of the detergent dosage
  • Continuous temperature control
  • Good heating performance
  • Full insulation
  • Convenient maintenance due to lateral maintenance openings and filter drawers
  • Downstream hook shower with InlineJet. It can be individually adjusted and operated with cold or hot water.

Type

Length

Height

Depth

Art.No.

stock

300 hooks/h
2.900 mm
2.000 mm
885 mm
53001125

High pressure cleaning machine for eurohooks and cattlehooks (HDW N2)

cleaning capacity up to 1,200 eurohooks or cattlehooks per hour with extra strong pollution, f. e lables and bristies They will be transported out of the water by the parallel working band filter.

Equipment:

  • PLC automatic program runtime (PLC = Programmable Logic Controller)
  • Compfort using by a coloured touch panel
  • The processing speed is variable adjustable. It is able to fit on the required hooks.
  • High value pumps. All components usatching with water consist of stainless steel.
  • Individual dosing of cleaning additive
  • Continuous regulation of temperature
  • Efficient temperature performance
  • Quick and easy maintenance due to openings at its sides
  • Parallel working filter unit

Dimensions without filtering unit

Height of entrance min. 2,350 mm

Type

Length

Height

Depth

Art.No.

stock

600 Haken/h
900 mm
1.450 mm
4.000 (2.900) mm
53001109
1,200 Haken/h
900 mm
1.450 mm
4.000 (2.900) mm
53001108

High pressure cleaning machine for Birail-Hooks HDW N2

cleaning capacity up to 1,200 Birail-Hooks with different length per hour with extra strong pollution, f. e lables and bristies. They will be transported out of the water by the parallel working band filter.

Equipment:

  • PLC automatic program runtime (PLC = Programmable Logic Controller)
  • Compfort using by a coloured touch panel
  • The processing speed is variable adjustable. It is able to fit on the required hooks.
  • High value pumps. All components usatching with water consist of stainless steel.
  • Individual dosing of cleaning additive
  • Continuous regulation of temperature
  • Efficient temperature performance
  • Quick and easy maintenance due to openings at its sides
  • Parallel working filter unit
  • All-insulated!

Dimensions without filtering unit

Height of entrance min. 2,350 mm

Type

Length

Height

Depth

Art.No.

stock

600 Haken/h
4.000 (2.900) mm
1.450 mm
900 mm
5300 1121
1.200 Haken/h
4.000 (2.900) mm
1.450 mm
900 mm
5300 1122

High pressure cleaning machine for spreadinghooks (HDW N2)

cleaning capacity up to 1,200 spreadinghooks per hour with extra strong pollution, f. e. lables and bristies. They will be transported out of the water by the parallel working band filter.

Equipment:

  • PLC automatic program runtime (PLC = Programmable Logic Controller)
  • Comfort using by a coloured touch panel
  • The processing speed is variable adjustable. It is able to fit on the required hooks.
  • High value pumps. All components usatching with water consist of stainless steel.
  • Individual dosing of cleaning additive
  • Continuous regulation of temperature
  • Efficient temperature performance
  • Quick and easy maintenance due to openings at its sides
  • Parallel working filter unit



Dimensions without filtering unit

Height of entrance min. 2,350 mm

Type

Length

Height

Depth

Art.No.

stock

600 Haken/h
1.200 mm
1.450 mm
6.000 (3.900) mm
53001106
1.200 Haken/h
1.200 mm
1.450 mm
6.000 (3.900) mm
53001107

High pressure cleaning machine for ham hangers (HDW)

cleaning capacity up to 600 pieces hooks type "Ham hanger" per hour with strong pollution.

Equipment:

  • PLC automatic program runtime (PLC = Programmable Logic Controller)
  • The processing speed is variable adjustable. It is able to fit on the demand hooks.
  • High value pumps. All components usatching with water consist of stainless steel.
  • Individual dosing of cleaning additive
  • Continuous regulation of temperature
  • Efficient temperature performance
  • Quick and easy maintenance due to openings at its sides

Type

Length

Height

Depth

Art.No.

stock

5.500 (4.000) mm
2.600 mm
1.100 mm
53001103
