Hooks up to 350 kg

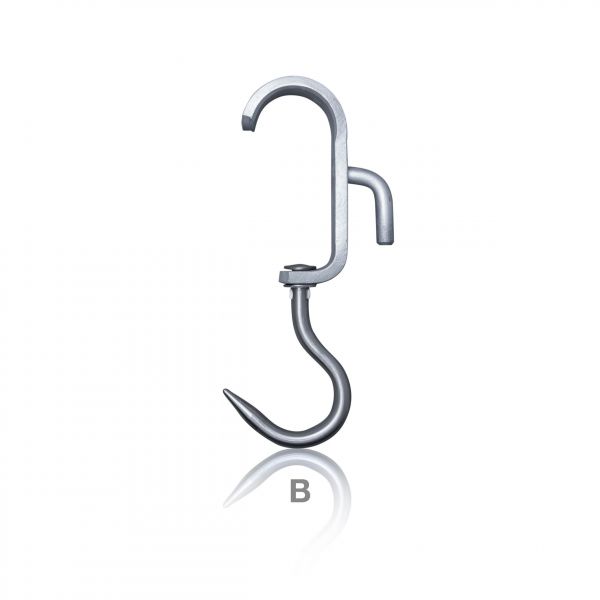

Sliding hook "Euro"

according to DIN 5047

Upper part: flat steel 35 x 12 mm, galv.
Sub-part: stainless steel Ø 16 mm

Type

L1

L2

Payload

Weight

Equipment

Art.No.

stock

A
307 mm
160 mm
250 kg
1,35 kg
5000 7307
B
307 mm
160 mm
250 kg
1,50 kg
with side hook Ø 16 mm
5000 7309

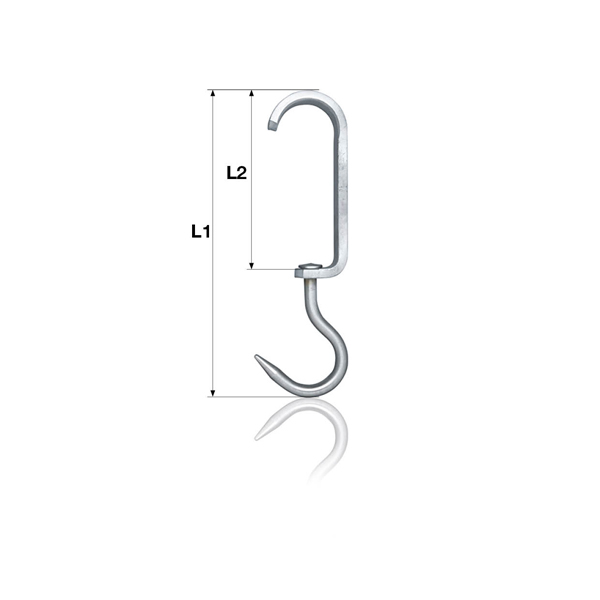

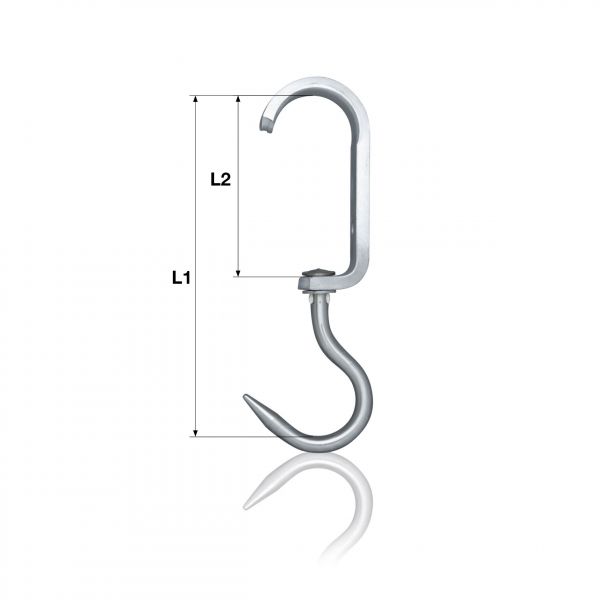

Sliding hook

Upper part: flat steel 35 x 12 mm, galv.
Sub-part: stainless steel Ø 16 mm

Type

L1

L2

Payload

Weight

Art.No.

stock

340 mm
200 mm
250 kg
1,40 kg
5000 8320

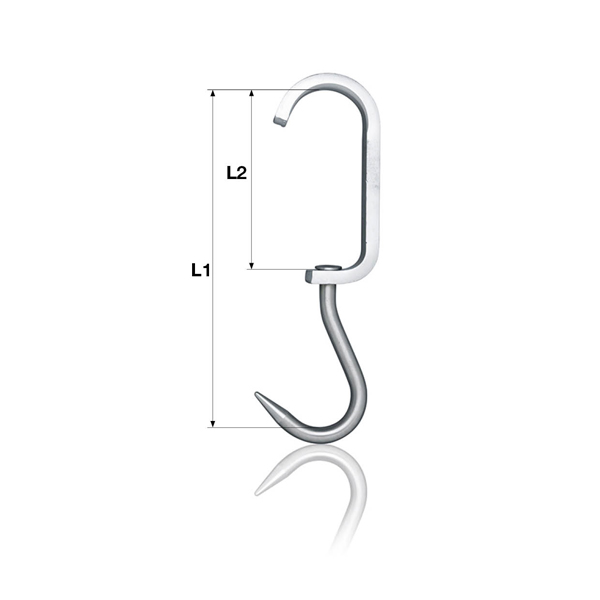

Swiss sliding hook

Upper part: flat steel 25 x 12 mm, galv.
Sub-part: stainless steel Ø 15 mm

Type

L1

L2

Payload

Weight

Art.No.

stock

302 mm
155 mm
250 kg
1,00 kg
5000 8322

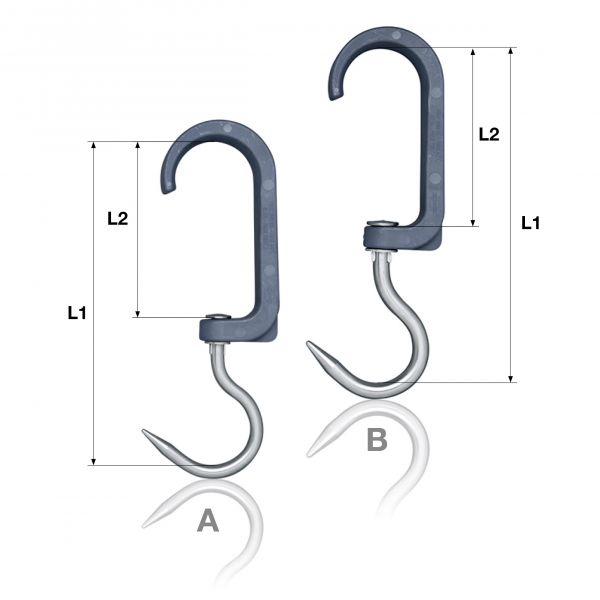

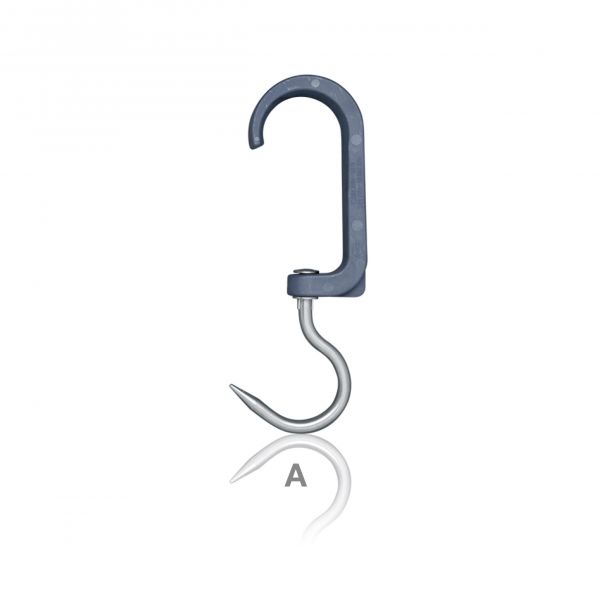

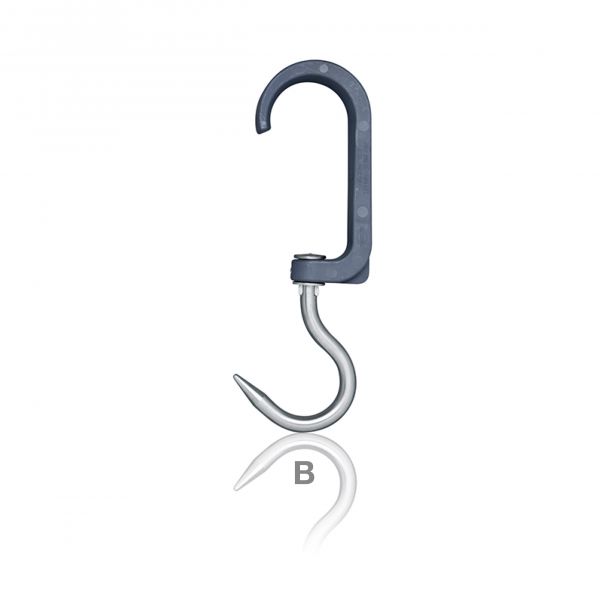

Nylon sliding hook

for tubes Ø 2"

Upper part: nylon, blue
Sub-part: stainless steel

Type

L1

L2

Diameter

Payload

Weight

Art.No.

stock

A
295 mm
160 mm
13 mm
200 kg
0,54 kg
5000 6605
B
307 mm
160 mm
16 mm
200 kg
0,70 kg
5000 6610

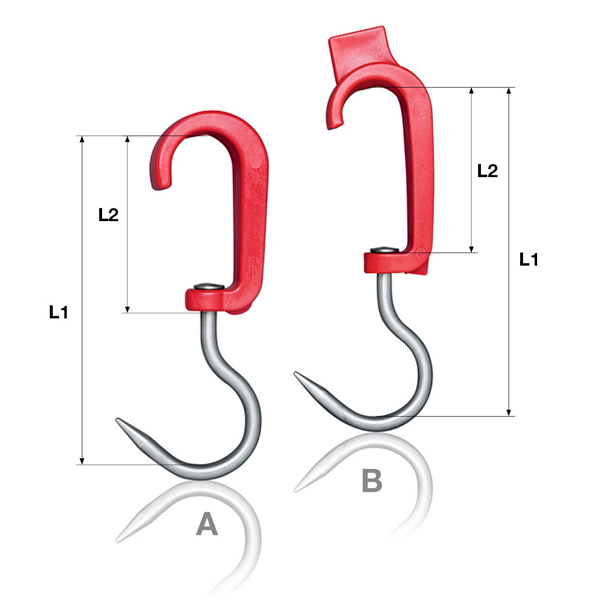

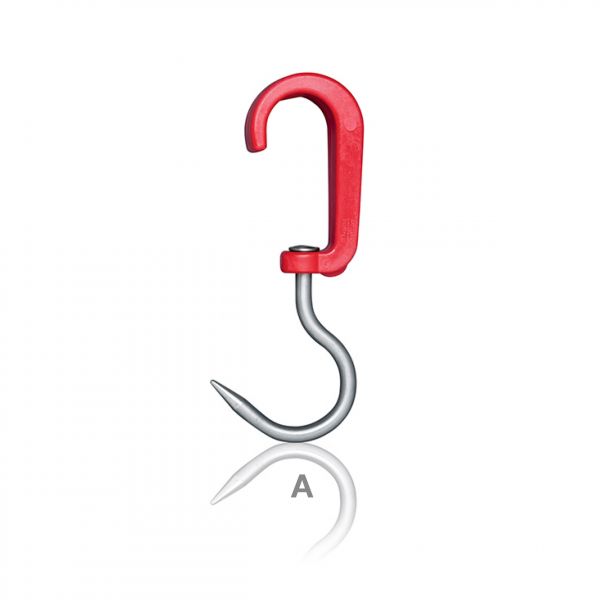

Nylon sliding hook

for tubes Ø 1 ½"

Upper part: nylon, red
Sub-part: stainless steel

Type

L1

L2

Diameter

Payload

Weight

Art.No.

stock

A
260 mm
130 mm
13 mm
200 kg
0,46 kg
5000 6501

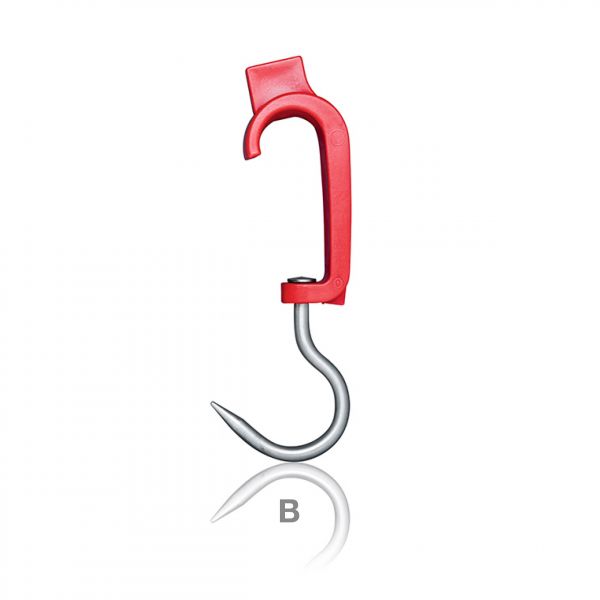

B
265 mm
115 mm
13 mm
with extra bar on top
200 kg
0,50 kg
5000 6502

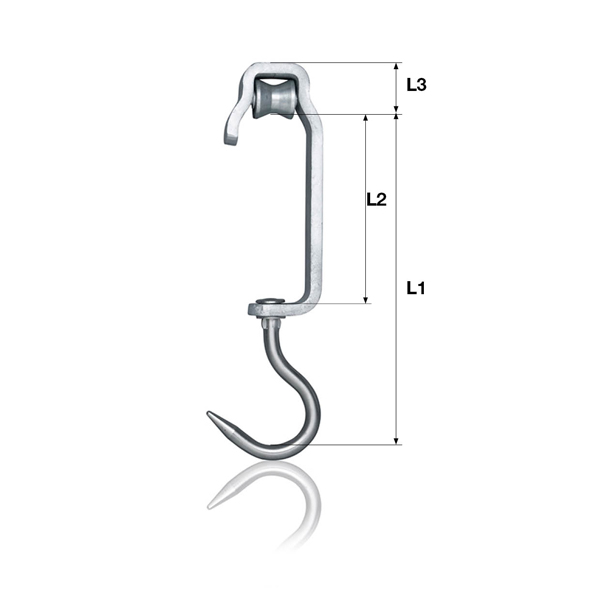

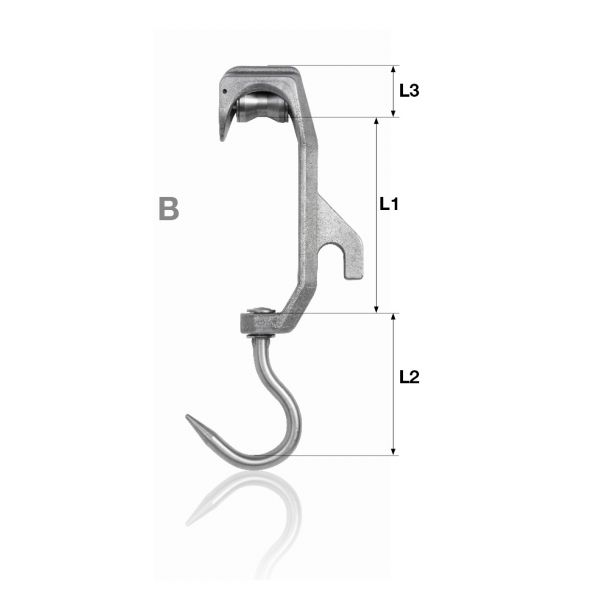

Rolling hook

Upper part:
A) flat steel 40 x 12 mm, galvanized, galv. wheel with ball bearings
B) with side hook
C) with stainless steel
Sub-part: stainless steel Ø 16 mm

(also available with side hook)

Type

L1

L2

L3

Payload

Weight

Equipment

Art.No.

stock

A
340 mm
200 mm
50 mm
300 kg
2,20 kg
5002 0330
B
340 mm
200 mm
50 mm
300 kg
2,20 kg
with side hook Ø 16 mm (not illustrated)
5002 0331
C
340 mm
200 mm
50 mm
300 kg
2,20 kg
with stainless steel
5002 0335

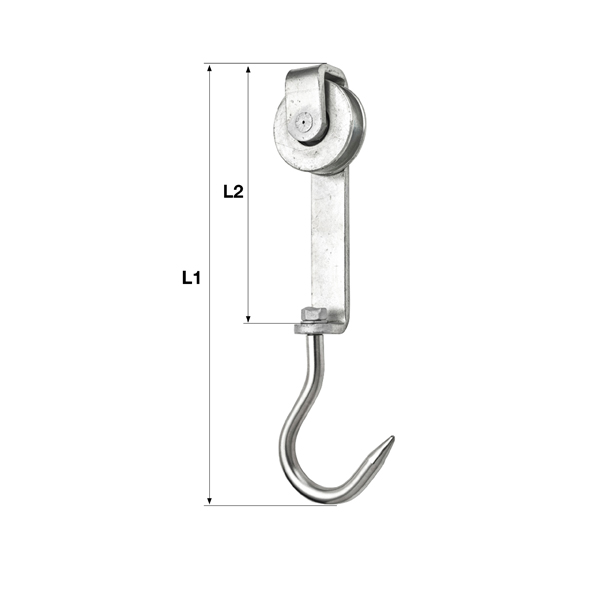

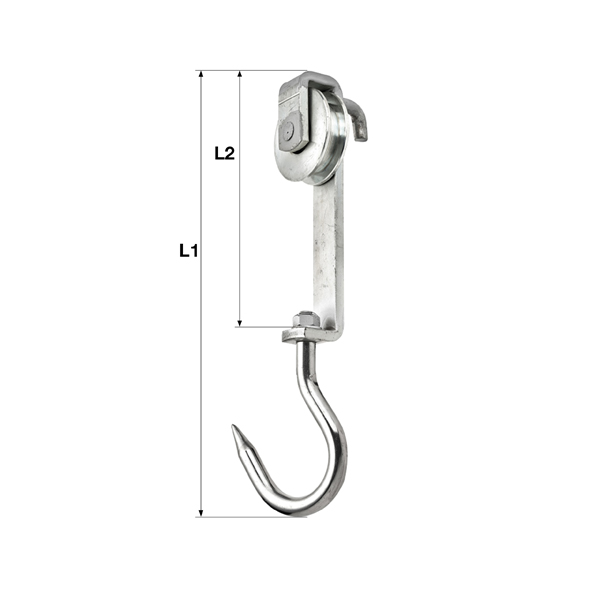

Rolling hook for flat bar rail

Upper part: flat steel 35 x 10 mm, galv.

Sup-part: stainless steel Ø 18 mm,
wheel Ø 90 x 25 mm, groove width 16 x debth 10 mm

Type

L1

L2

Payload

Weight

Equipment

Art.No.

stock

405 mm
300 mm
250 kg
2,30 kg
5008 6310
405 mm
300 mm
250 kg
2,50 kg
with side hook Ø 14 mm
5008 6311

Rolling hook far flat bar rail

Upper part: flat steel 35 x 8 mm, galv.

Sup-part: stainless steel Ø 15 mm,
wheel Ø 80 x 25 mm, groove width 16 x debth 10 mm

Type

L1

L2

Payload

Weight

Equipment

Art.No.

stock

345 mm
260 mm
250 kg
1,60 kg
5008 6300
345 mm
260 mm
250 kg
1,70 kg
with side hook Ø 14 mm
5008 6301

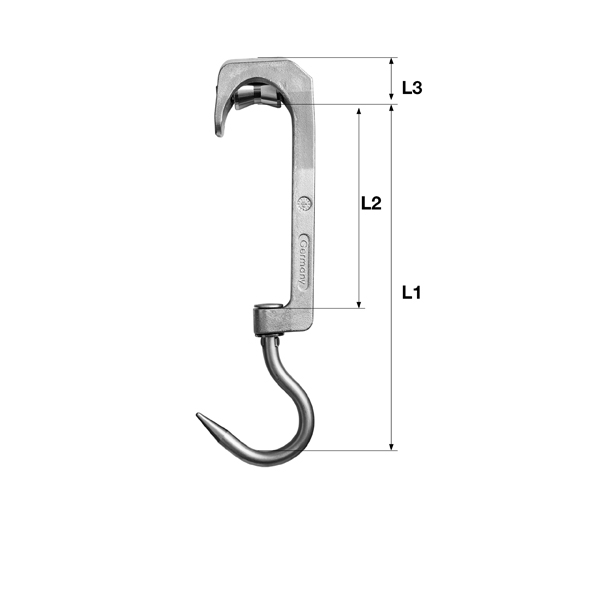

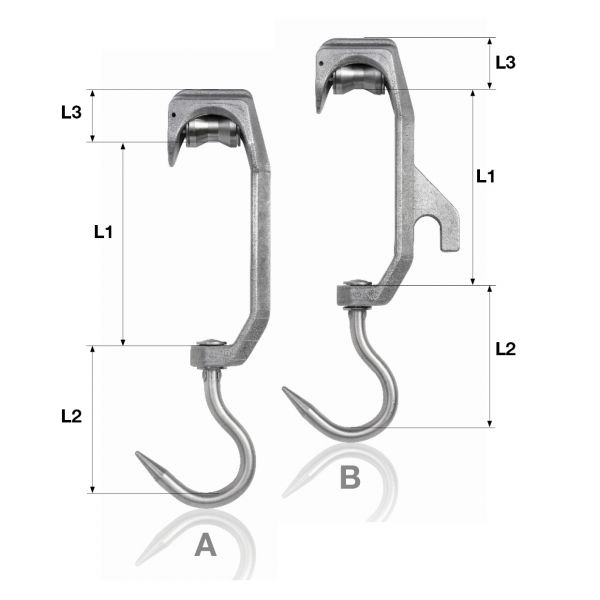

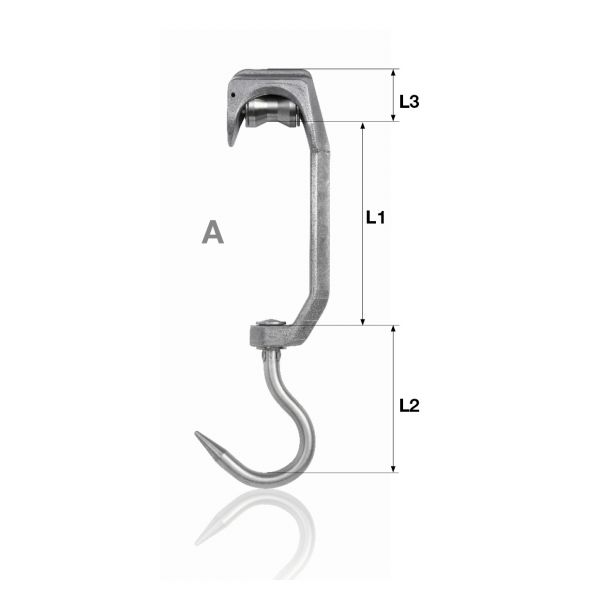

Rolling hook

Upper part: aluminium casting, galv. wheel with ball or needle bearings, greasable
Sub-part: stainless steel Ø 16 mm

Type

L1

L2

L3

Payload

Weight

Art.No.

stock

340 mm
205 mm
48 mm
300 kg
1,50 kg
5002 2287

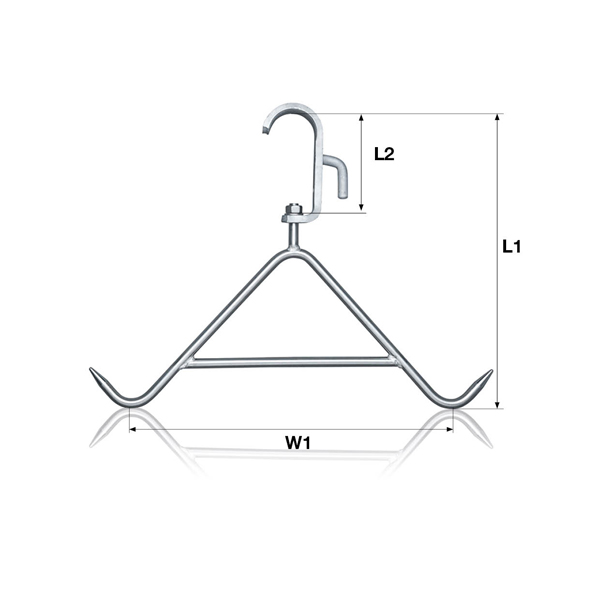

Sliding hook, spreading hook 500 mm

Upper part: flat steel 35 x 12 mm with side hook Ø 16 mm, galv.
Sub-part: stainless steel Ø 16 mm

Type

L1

L2

W1

Payload

Weight

Art.No.

stock

490 mm
160 mm
500 mm
250 kg
3,00 kg
5001 6000

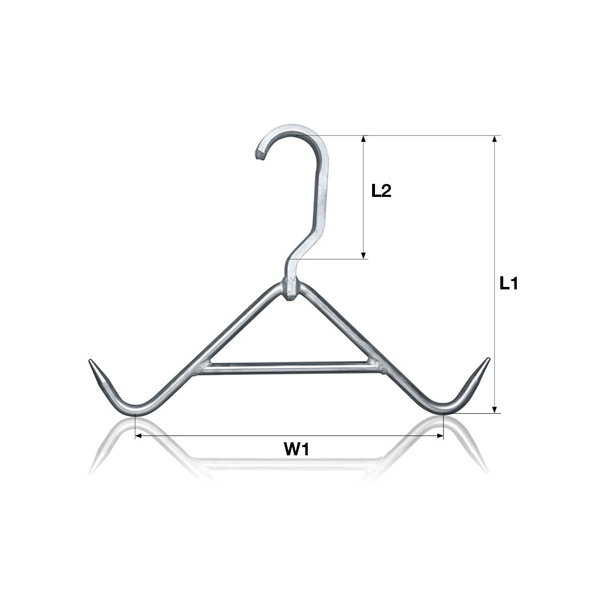

Sliding hook, spreading hook inflexible

Upper part: flat steel 35 x 12 mm, galv.
Sub-part: stainless steel Ø 16 mm

Type

L1

L2

W1

Payload

Weight

Art.No.

stock

350 mm
160 mm
400 mm
250 kg
2,50 kg
5001 0350

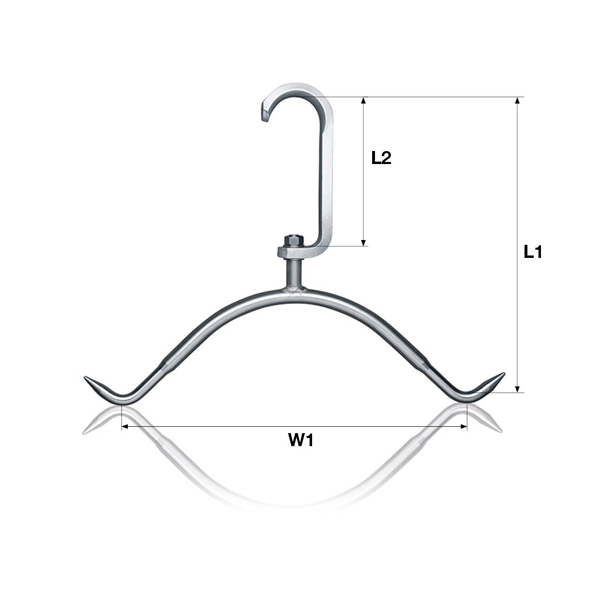

Sliding hook, 480 mm high

Upper part: flat steel 40 x 15 mm, galv.
Sub-part: stainless steel Ø 22 mm, reduced to Ø 17 mm

Also available with upper part rolling hook.

Type

L1

L2

W1

Payload

Weight

Art.No.

stock

415 mm
200 mm
480 mm
300 kg
3,50 kg
5002 3000

Sliding hook, spearing hook plane

Upper part: flat steel 35 x 12 mm, galv.
Sub-part: stainless steel Ø 22 mm, reduced to Ø 17 mm

Also available with upper part rolling hook.

Type

L1

L2

W1

Payload

Weight

Art.No.

stock

305 mm
200 mm
480 mm
300 kg
2,80 kg
5900 0090

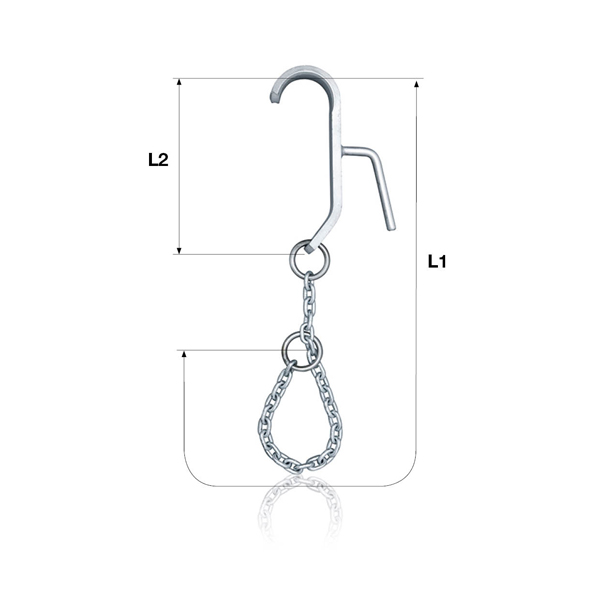

Sliding hook for bleeding

with open hand-shackle Ø 12 mm

Upper part: flat steel 35 x 12 mm, galvanized
Sub-part: galvanized chain, made of special steel

Type

L1

L2

Payload

Weight

Art.No.

stock

800 mm
235 mm
300 kg
1,74 kg
5002 4000

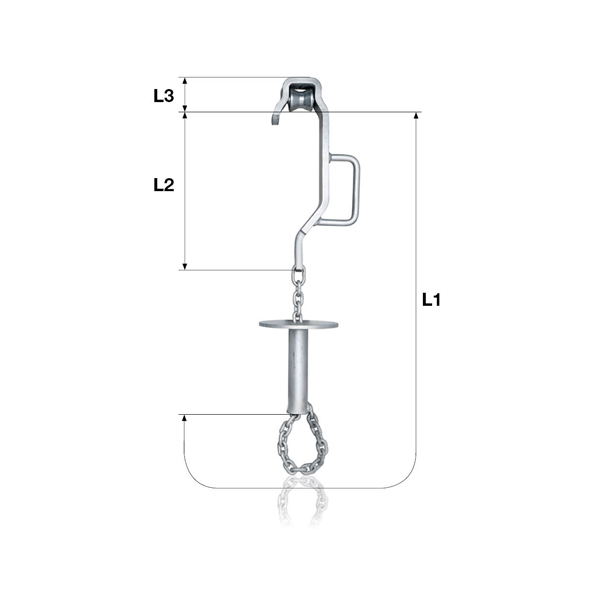

Rolling hook for bleeding

with closed hand-shackle Ø 12 mm

Upper part: flat steel 40 x 12 mm, galv, with galv. wheel with ball or needle bearings, greasable
Sub-part: galvanized chain with plate, for automatic unchaining

Type

L1

L2

L3

Payload

Weight

Art.No.

stock

740 mm
250 mm
50 mm
300 kg
3,44 kg
5002 6020
